2502811
hot street - dirt track
Honda D16Z6 123 hp
I-4cyl 1.6L 16v SOHC
intake
exhaust

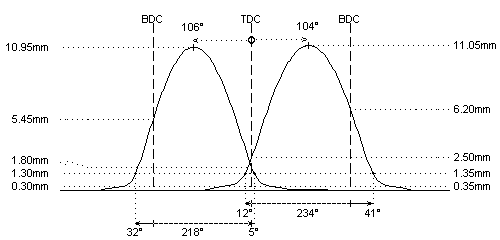

camshaft data:
lash ramp
: 0.33mm
: 0.28mm
duration @ 0.1mm
: 277°
(264-264)
: 256°
(256-256)
duration @ 1.0mm
: 233°
(216-216)
: 217°
(217-217)
valve lift
: 11.05mm
(10.45-10.45)
: 10.95mm
(10.95-10.95)
cam lift
: 6.75mm
(6.45-6.45)
: 6.05mm
(6.05-6.05)
lobe angle
: 104°
(106-106)
: 106°
(106-106)
timing @ 1.0mm
: 12° / 41°
: 32° / 5°
valve lift @ TDC
: 2.50mm
(1.25-1.25)
: 1.80mm
(1.80-1.80)
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
REMARKS :
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
