2502810
sport
Honda D16Z6 123 hp
I-4cyl 1.6L 16v SOHC
intake
exhaust

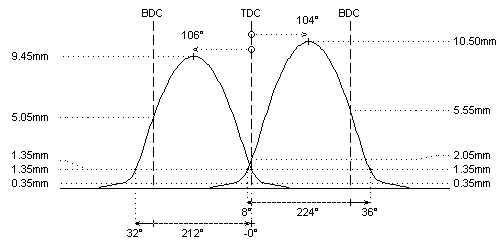

camshaft data:
lash ramp
: 0.33mm
: 0.35mm
duration @ 0.1mm
: 265°
(238-238)
: 247°
(247-247)
duration @ 1.0mm
: 224°
(201-201)
: 212°
(212-212)
valve lift
: 10.50mm
(8.50-8.50)
: 9.45mm
(9.45-9.45)
cam lift
: 6.45mm
(5.35-5.35)
: 5.30mm
(5.30-5.30)
lobe angle
: 104°
(106-106)
: 106°
(106-106)
timing @ 1.0mm
: 8° / 36°
: 32° / -0°
valve lift @ TDC
: 2.05mm
(0.95-0.95)
: 1.35mm
(1.35-1.35)
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
REMARKS :
