7300217
tarmac rally - race
Triumph FM11 big bearings: 49.92mm
(FT/FT)
Save to PDF
intake
exhaust

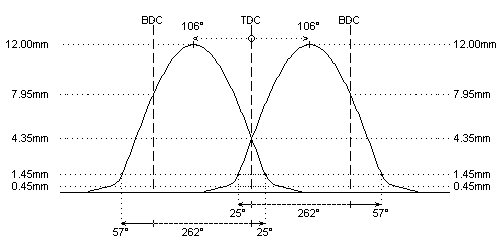

camshaft data:
lash ramp
: 0.45mm
0.45mm
duration @ 0.1mm
: 300°
300°
duration @ 1.0mm
: 262°
262°
valve lift
: 12.00mm
12.00mm
cam lift
: 12.00mm
12.00mm
lobe angle
: 106°
106°
timing @ 1.0mm
: 25° / 57°
57° / 25°
valve lift @ TDC
: 4.35mm
4.35mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: not available
: not available
lower retainer
: not available
: not available
exterior spring
: not available
: not available
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
REMARKS :
#
FOR COMPETITION APPLICATIONS ONLY. Following details must be verified:
-
the camshafs must turn smooth in the cylinderhead, provide free travel by machining where needed
-
distance between valve seal and retainer at full lift must be 0.6mm at least
-
minimum valve spring travel of 1.0mm at full lift must be provided
-
distance between valve and piston 1.0mm (pref. 1.5mm). check 5-15° before TDC on exhaust, and after TDC on intake
#
ONLY for use in competition engines with independent engine management (throttle position sensor) or carburettors
