7300213
sport
Triumph FM11 big bearings: 49.92mm
(FT/FT)
intake
exhaust

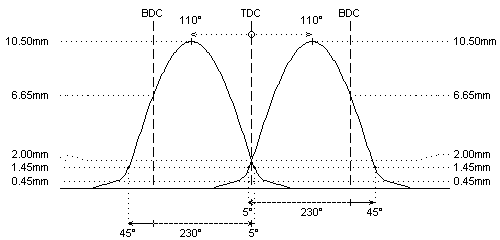

camshaft data:
lash ramp
: 0.45mm
0.45mm
duration @ 0.1mm
: 268°
268°
duration @ 1.0mm
: 230°
230°
valve lift
: 10.50mm
10.50mm
cam lift
: 10.50mm
10.50mm
lobe angle
: 110°
110°
timing @ 1.0mm
: 5° / 45°
45° / 5°
valve lift @ TDC
: 2.00mm
2.00mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
REMARKS :
