7103217
hot street - dirt track
Toyota 18R-G Carina 2000 GT 128hp
I-4cyl 2.0L 8v DOHC
Save to PDF
intake
exhaust

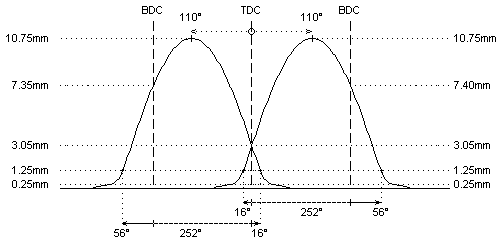

camshaft data:
lash ramp
: 0.25mm
0.25mm
duration @ 0.1mm
: 284°
284°
duration @ 1.0mm
: 252°
252°
valve lift
: 10.75mm
10.75mm
cam lift
: 10.75mm
10.75mm
lobe angle
: 110°
110°
timing @ 1.0mm
: 16° / 56°
56° / 16°
valve lift @ TDC
: 3.05mm
3.05mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: O.E.M.
: O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
REMARKS :
#
Distance between valve and piston should be 1.0mm at least:
-
check 5-15° after TDC on intake
-
check 5-15° before TDC on exhaust
Machine pistons if required. Wrong installation can cause severe engine damage!
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
