5500315
sport
Renault C1J.782 / 784 / 788 R5 GT turbo, R9 turbo, R11 turbo
I-4cyl 1.4L 8v OHV (FT/FT)
intake
exhaust

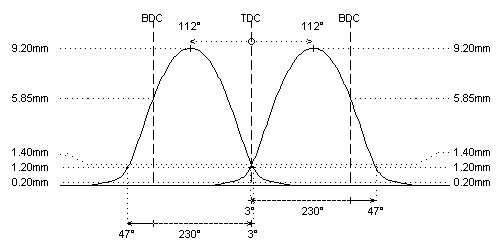

camshaft data:
lash ramp
: 0.20mm
0.20mm
duration @ 0.1mm
: 291°
291°
duration @ 1.0mm
: 230°
230°
valve lift
: 9.20mm
9.20mm
cam lift
: 9.20mm
9.20mm
lobe angle
: 112°
112°
timing @ 1.0mm
: 3° / 47°
47° / 3°
valve lift @ TDC
: 1.40mm
1.40mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 25kg @ 31.0mm
: 22kg @ 32.0mm
max. load / lift
: 62kg @ 9.0mm
: 60kg @ 9.0mm
REMARKS :
REMARKS :
#
- cam lobe sequence:
EI-IE-EI-IE
- total length:
384mm
- single chain
- journal diameters: 37.94 - 37.94 - 37.94 -
37.94mm
- available in chilled cast iron only
