tarmac rally - race
Renault F7
I-4cyl 2.0L 16v DOHC (DTH/DTH)
Save to PDF
intake
exhaust

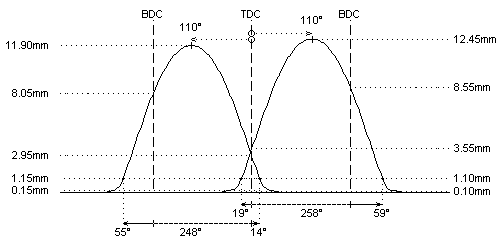

camshaft data:
lash ramp
: 0.10mm
0.15mm
duration @ 0.1mm
: 288°
274°
duration @ 1.0mm
: 258°
249°
valve lift
: 12.45mm
11.90mm
cam lift
:
lobe angle
: 110°
110°
timing @ 1.0mm
: 19° / 59°
55° / 14°
valve lift @ TDC
: 3.55mm
2.95mm
parts setup:
cam wheels :
: View CTRE004
: View CTRE004
follower
: View CC002
: View CC002
valve lash
: View TS102
: View TS102
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: View 99337
: View 99337
lower retainer
: not available
: not available
exterior spring
: View PAC-E92009
: View PAC-E92009
interior spring
: View PAC-I92009
: View PAC-I92009
fitted load / length
: 33kg @ 33.5mm
: 33kg @ 33.5mm
max. load / lift
: 94kg @ 12.5mm
: 94kg @ 12.5mm
REMARKS :
#
replace OEM lower retainer to obtain a correct installation / fitted length (currently not available)
#
#
Inlet Valves:
#
View9255003 d7.00 // D33.2 // L107.6
#
Exhaust Valves:
#
View9255004 d7.00 // D28.7 // L109.0
REMARKS :
#
Renault has used different camshaft specifications (1.8L, 2.0L, Clio Williams). Depending on the engine version and application, extra modifications may be required.
#
- valve clearance is to be adjusted using mechanical lash caps
-
please make sure that the lash cap does not touch the valve locks !
#
FOR COMPETITION APPLICATIONS ONLY. Following details must be verified:
-
the camshafs must turn smooth in the cylinderhead, provide free travel by machining where needed
-
distance between valve seal and retainer at full lift must be 0.6mm at least
-
minimum valve spring travel of 1.0mm at full lift must be provided
-
distance between valve and piston 1.0mm (pref. 1.5mm). check 5-15° before TDC on exhaust, and after TDC on intake
#
ONLY for use in competition engines with independent engine management (throttle position sensor) or carburettors
