REMARKS :
#

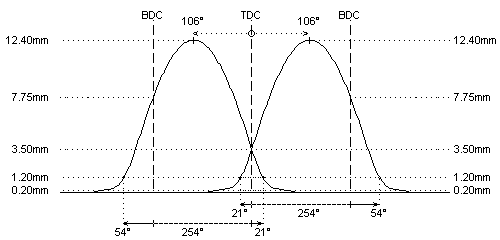

"type 1" steel billet camshafts for Mitsubishi 4G63 DOHC engines (Lancer evo 1-2-3):
- engine fitted left / gearbox right (driver's point of view)
- ignition drive on intake camshaft with M8 bolt
#
engine with hydraulic rocker arm studs. To use camshafts with mechanical profiles, mechanical studs MUST be used. In case of doubt, please contact your distributor
#
FOR COMPETITION APPLICATIONS ONLY. Following details must be verified:
-
the camshafs must turn smooth in the cylinderhead, provide free travel by machining where needed
-
distance between valve seal and retainer at full lift must be 0.6mm at least
-
minimum valve spring travel of 1.0mm at full lift must be provided
-
distance between valve and piston 1.0mm (pref. 1.5mm). check 5-15° before TDC on exhaust, and after TDC on intake
#
negative radius cam design for improved midrange torque
#
ONLY for use in competition engines with independent engine management (throttle position sensor) or carburettors
