2290406
turbo conversion
Ford ZH17 Sigma VVT in, 126hp
I-4cyl 1.7L 16v DOHC (DT/DT)
intake
exhaust

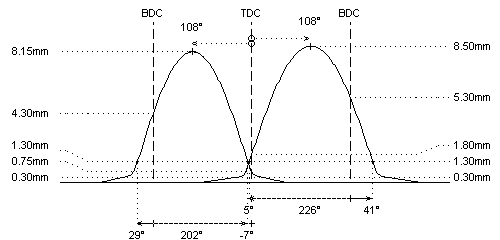

camshaft data:
lash ramp
: 0.30mm
0.30mm
duration @ 0.1mm
: 255°
238°
duration @ 1.0mm
: 226°
202°
valve lift
: 8.50mm
8.15mm
cam lift
:
lobe angle
: 108°
108°
timing @ 1.0mm
: 5° / 41°
29° / -7°
valve lift @ TDC
: 1.80mm
0.75mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 19kg @ 34.0mm
: 19kg @ 34.0mm
max. load / lift
: 38kg @ 10.5mm
: 38kg @ 10.5mm
REMARKS :
REMARKS :
