1900706
sport
Fiat 156.A2.100 fire (55hp)
I-4cyl 1.0L 8v SOHC (DT/DT)
intake
exhaust

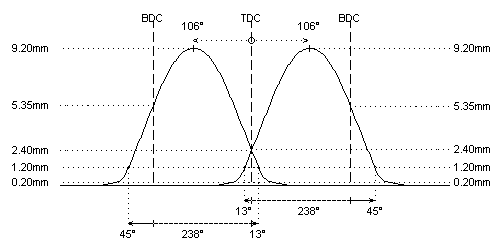

camshaft data:
lash ramp
: 0.20mm
0.20mm
duration @ 0.1mm
: 272°
272°
duration @ 1.0mm
: 238°
238°
valve lift
: 9.20mm
9.20mm
cam lift
: 9.20mm
9.20mm
lobe angle
: 106°
106°
timing @ 1.0mm
: 13° / 45°
45° / 13°
valve lift @ TDC
: 2.40mm
2.40mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 17kg @ 32.5mm
: 17kg @ 32.5mm
max. load / lift
: 63kg @ 10.5mm
: 63kg @ 10.5mm
REMARKS :
REMARKS :
#
steel billet camshafts
