4903164
turbo conversion
Citroën XU10J4RS 167hp
I-4cyl 2.0L 16v DOHC (DTH/DTH)
intake
exhaust

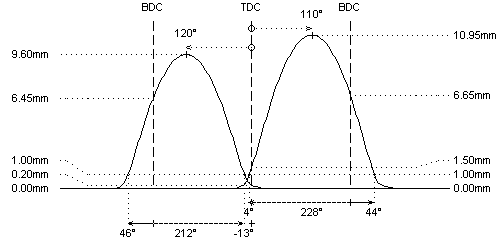

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 269°
251°
duration @ 1.0mm
: 228°
213°
valve lift
: 10.95mm
9.60mm
cam lift
:
lobe angle
: 110°
120°
timing @ 1.0mm
: 4° / 44°
46° / -13°
valve lift @ TDC
: 1.50mm
0.20mm
parts setup:
cam wheels :
:
CTPE003
:
CTPE003
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
:
O.E.M.
:
O.E.M.
fitted load / length
: 35kg @ 34.2mm
: 37kg @ 33.7mm
max. load / lift
: 92kg @ 11.0mm
: 92kg @ 10.5mm
REMARKS :
REMARKS :
#
- cast iron camshafts
- groove on exhaust camshaft
