1301701
sport
Bmw M44 B19 138hp
I-4cyl 1.9L 16v DOHC (RPRH/RPRH)
intake
exhaust

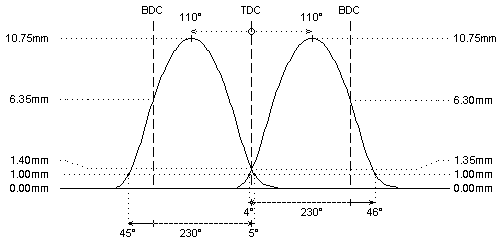

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 284°
284°
duration @ 1.0mm
: 230°
230°
valve lift
: 10.75mm
10.75mm
cam lift
: 6.50mm
6.50mm
lobe angle
: 110°
110°
timing @ 1.0mm
: 4° / 46°
45° / 5°
valve lift @ TDC
: 1.35mm
1.40mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 27kg @ 35.5mm
: 27kg @ 35.5mm
max. load / lift
: 67kg @ 11.0mm
: 67kg @ 11.0mm
REMARKS :
REMARKS :
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
