hot street - dirt track
Volkswagen hydraulic tappets, 8mm valves, MK-8H
I-4cyl 1.8L 8v SOHC (DTH/DTH)
Save to PDF
intake
exhaust

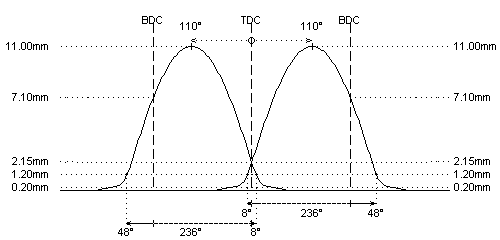

camshaft data:
lash ramp
: 0.20mm
0.20mm
duration @ 0.1mm
: 276°
276°
duration @ 1.0mm
: 236°
236°
valve lift
: 11.00mm
11.00mm
cam lift
:
lobe angle
: 110°
110°
timing @ 1.0mm
: 8° / 48°
48° / 8°
valve lift @ TDC
: 2.15mm
2.15mm
parts setup:
cam wheels :
: View CCR3232
: View CCR3232
follower
: View CC005
: View CC005
valve lash
: View TS103
: View TS103
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: View 99320
: View 99320
lower retainer
: remove
: remove
exterior spring
: View PAC-E92009
: View PAC-E92009
interior spring
: View PAC-I92009
: View PAC-I92009
fitted load / length
: 32kg @ 34.2mm
: 32kg @ 34.2mm
max. load / lift
: 101kg @ 14.0mm
: 101kg @ 14.0mm
REMARKS :
#
if required, use extra shims to increase spring load
#
use PAC-D12009 (GOLD quality) for applications over 12.5mm valve lift / 8500rpm
REMARKS :
#
to use these camshafts in cylinderheads with hydraulic followers in O.E.M. version:
- change hydraulic followers for mechanical tappets (ref. CC005)
- use cam base circle diameter of maximum 34mm (SPECIFY WHEN ORDERING)
#
- valve clearance is to be adjusted using mechanical lash caps
-
please make sure that the lash cap does not touch the valve locks !
#
to use these camshafts in cylinderheads with hydraulic followers:
-
change hydraulic followers for mechanical tappets (ref. CC005)
-
use cam base circle diameter of 34mm/1.30" or less
