7650249
sport
Volkswagen hydraulic tappets, 8mm valves, MK-8H
I-4cyl 1.8L 8v SOHC (DTH/DTH)
intake
exhaust

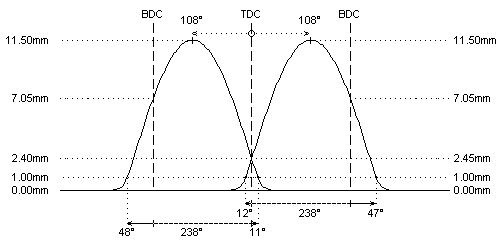

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 275°
275°
duration @ 1.0mm
: 239°
239°
valve lift
: 11.50mm
11.50mm
cam lift
:
lobe angle
: 108°
108°
timing @ 1.0mm
: 12° / 47°
48° / 11°
valve lift @ TDC
: 2.45mm
2.40mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
:
O.E.M.
:
O.E.M.
fitted load / length
: 27kg @ 32.5mm
: 27kg @ 32.5mm
max. load / lift
: 75kg @ 11.5mm
: 75kg @ 11.5mm
REMARKS :
REMARKS :
