7601012
sport
Volkswagen Type 1 24hp
B-4cyl 1.1L 8v SOHC
intake
exhaust

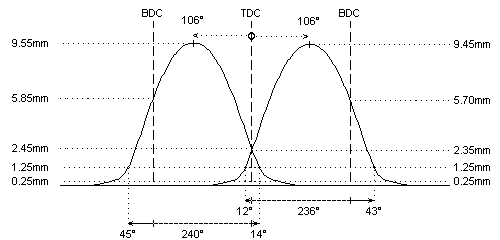

camshaft data:
lash ramp
: 0.25mm
0.25mm
duration @ 0.1mm
: 281°
293°
duration @ 1.0mm
: 235°
239°
valve lift
: 9.45mm
9.55mm
cam lift
: 8.60mm
8.65mm
lobe angle
: 106°
106°
timing @ 1.0mm
: 12° / 43°
45° / 14°
valve lift @ TDC
: 2.35mm
2.45mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
REMARKS :
