5502435
sport
Renault F4R.730 Clio II (VVT in, 172/180hp)
I-4cyl 2.0L 16v DOHC (RPRH/RPRH)
intake
exhaust

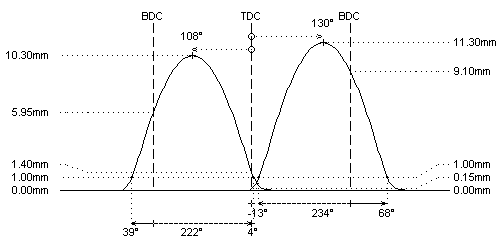

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 269°
257°
duration @ 1.0mm
: 235°
223°
valve lift
: 11.30mm
10.30mm
cam lift
: 5.70mm
5.20mm
lobe angle
: 130° (114°)
108°
timing @ 1.0mm
: -13° / 68°
39° / 4°
valve lift @ TDC
: 0.15mm (1.35mm)
1.40mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 20kg @ 34.5mm
: 20kg @ 34.5mm
max. load / lift
: 68kg @ 11.3mm
: 68kg @ 11.3mm
REMARKS :
REMARKS :
#
camshafts for use with VVT on intake (like original)
#
ECU reprogramming required
