1030108
sport
Alfa Romeo AR 301.00 SUD
B-4cyl 1.2L 8v SOHC (DT/DT)
intake
exhaust

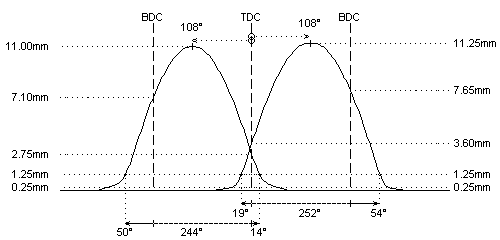

camshaft data:
lash ramp
: 0.23mm
0.25mm
duration @ 0.1mm
: 279°
291°
duration @ 1.0mm
: 253°
244°
valve lift
: 11.25mm
11.00mm
cam lift
:
lobe angle
: 108°
108°
timing @ 1.0mm
: 19° / 54°
50° / 14°
valve lift @ TDC
: 3.60mm
2.75mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
REMARKS :
