7605132
sport
Volkswagen GK, FZ, FA, GG, HH 60hp
I-4cyl 1.3L 8v SOHC (RP/RP)
intake
exhaust

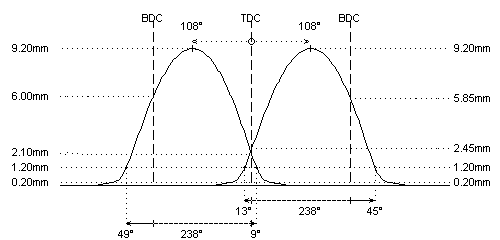

camshaft data:
lash ramp
: 0.20mm
0.20mm
duration @ 0.1mm
: 274°
274°
duration @ 1.0mm
: 238°
238°
valve lift
: 9.20mm
9.20mm
cam lift
: 6.65mm
6.65mm
lobe angle
: 108°
108°
timing @ 1.0mm
: 13° / 45°
49° / 9°
valve lift @ TDC
: 2.45mm
2.10mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 23kg @ 30.5mm
: 23kg @ 30.5mm
max. load / lift
: 52kg @ 10.0mm
: 52kg @ 10.0mm
REMARKS :
REMARKS :
#
Distance between valve and piston should be 1.0mm at least:
-
check 5-15° after TDC on intake
-
check 5-15° before TDC on exhaust
Machine pistons if required. Wrong installation can cause severe engine damage!
