Renault K4M.708 742 744 745 748 Clio Super 1600 16v
I-4cyl 1.6L 16v DOHC (RPR/RPR)
Save to PDF
intake
exhaust

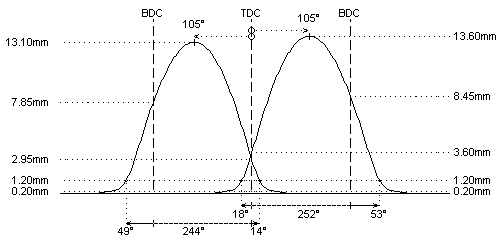

camshaft data:
lash ramp
: 0.20mm
0.20mm
duration @ 0.1mm
: 293°
285°
duration @ 1.0mm
: 251°
243°
valve lift
: 13.60mm
13.10mm
cam lift
: 6.80mm
6.55mm
lobe angle
: 105°
105°
timing @ 1.0mm
: 18° / 53°
49° / 14°
valve lift @ TDC
: 3.60mm
2.95mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: O.E.M.
: O.E.M.
interior spring
fitted load / length
: 29kg @ 35.0mm
: 29kg @ 35.0mm
max. load / lift
: 71kg @ 12.0mm
: 71kg @ 12.0mm
REMARKS :
REMARKS :
#
FOR COMPETITION APPLICATIONS ONLY. Following details must be verified:
-
the camshafs must turn smooth in the cylinderhead, provide free travel by machining where needed
-
distance between valve seal and retainer at full lift must be 0.6mm at least
-
minimum valve spring travel of 1.0mm at full lift must be provided
-
distance between valve and piston 1.0mm (pref. 1.5mm). check 5-15° before TDC on exhaust, and after TDC on intake
#
ONLY for use in competition engines with independent engine management (throttle position sensor) or carburettors
