7642021
sport
Volkswagen RE2000 Oettinger
I-4cyl 2.0L 16v DOHC
intake
exhaust

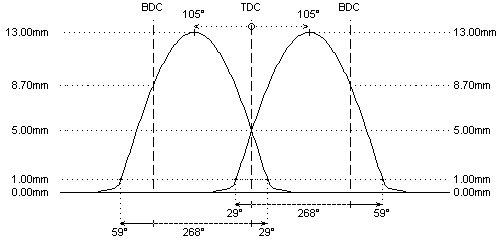

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 340°
340°
duration @ 1.0mm
: 268°
268°
valve lift
: 13.00mm
13.00mm
cam lift
: 13.00mm
13.00mm
lobe angle
: 105°
105°
timing @ 1.0mm
: 29° / 59°
59° / 29°
valve lift @ TDC
: 5.00mm
5.00mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
REMARKS :
