REMARKS :
#
Camshafts for use with VVT system on the intake (as original).
The exhaust camshaft is fitted with an adjustable sprocket to optimize the cam timing. The sprocket has a reference hole corresponding to optimal position for fast road use.
#

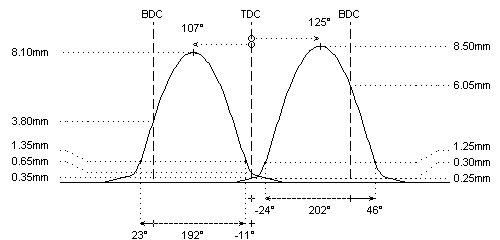

The VVT system on the intake camshaft changes the cam timing continuously (and so the lift at TDC):
-
intake: 125° (disengaged - full retard) // 65° (engaged - full advance)
-
exhaust: 107° (no VVT)
Please make sure there is enough distance between valve and piston when the VVT system is engaged at full advance.
