O.E.M.
Toyota 2ZZ-GE VVTL-i
I-4cyl 1.8L 16v DOHC (RP/RP)
intake
exhaust

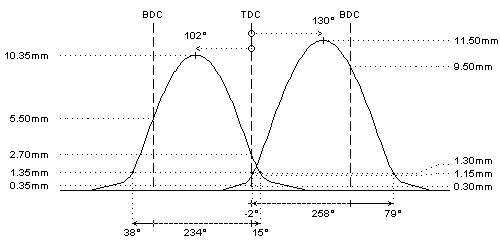

camshaft data:
lash ramp
: 0.30mm
: 0.35mm
duration @ 0.1mm
: 315°
(249)
: 304°
(255)
duration @ 1.0mm
: 257°
(186)
: 233°
(186)
valve lift
: 11.50mm
(7.55)
: 10.35mm
(7.75)
cam lift
: 6.65mm
(4.80)
: 6.05mm
(4.90)
lobe angle
: 130°
(124)
: 102°
(100)
timing @ 1.0mm
: -2° / 79°
: 38° / 15°
valve lift @ TDC
: 1.15mm
(0.30)
: 2.70mm
(1.00)
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 22kg @ 38.8mm
: 22kg @ 38.3mm
max. load / lift
: 60kg @ 12.0mm
: 58kg @ 10.5mm
REMARKS :
REMARKS :
