O.E.M.
Volkswagen 2E(92-94), ADY (94-95), AGG (95-97) hydraulic tappets, 7mm valves, MK-7H
I-4cyl 2.0L 8v SOHC (DTH/DTH)
intake
exhaust

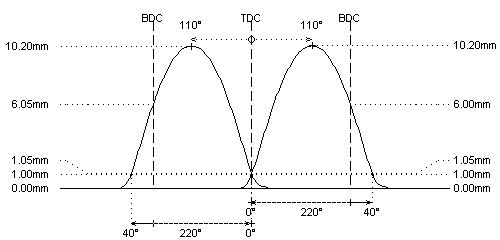

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 259°
258°
duration @ 1.0mm
: 220°
220°
valve lift
: 10.20mm
10.20mm
cam lift
:
lobe angle
: 110°
110°
timing @ 1.0mm
: -0° / 40°
40° / -0°
valve lift @ TDC
: 1.05mm
1.05mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 30kg @ 34.0mm
: 31kg @ 33.7mm
max. load / lift
: 61kg @ 11.2mm
: 61kg @ 11.0mm
REMARKS :
#
measurements are taken in 2E cylinder head (048 103 373)
REMARKS :
#
specifications for "026 109 101A" camshaft (as found in GX, PG, 2E, ...)
