O.E.M.
Hyundai G4ED 110hp / 144Nm
I-4cyl 1.6L 16v DOHC (DTH/DTH)
intake
exhaust

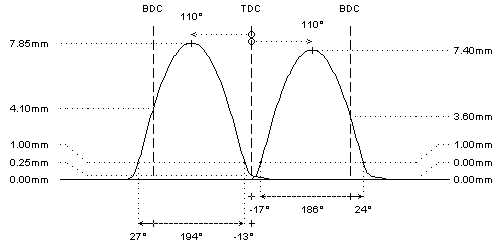

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 232°
241°
duration @ 1.0mm
: 187°
194°
valve lift
: 7.40mm
7.85mm
cam lift
:
lobe angle
: 110°
110°
timing @ 1.0mm
: -17° / 24°
27° / -13°
valve lift @ TDC
: 0.05mm
0.25mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
#
original valve spring info is not available
REMARKS :
#
The exact valve timing data of the original camshafts are not known. Valve timing data are illustrated on estimated peak angle of 110°. The actual valve timing in the engine may be different, as well as the indicated lift at TDC.
