O.E.M.
Porsche 944 Turbo
I-4cyl 2.5L 8v SOHC (DTH/DTH)
intake
exhaust

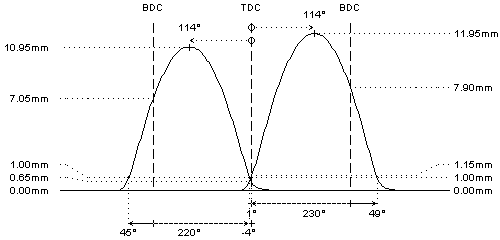

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 266°
258°
duration @ 1.0mm
: 230°
221°
valve lift
: 11.95mm
10.95mm
cam lift
:
lobe angle
: 114°
114°
timing @ 1.0mm
: 1° / 49°
45° / -4°
valve lift @ TDC
: 1.15mm
0.65mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
#
original valve spring info is not available
REMARKS :
