O.E.M.
Porsche Carrera (210hp)
B-6cyl 2.7L 12v SOHC
intake
exhaust

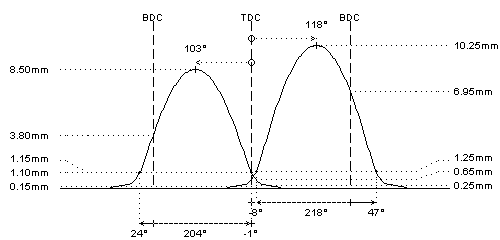

camshaft data:
lash ramp
: 0.25mm
0.15mm
duration @ 0.1mm
: 253°
250°
duration @ 1.0mm
: 219°
203°
valve lift
: 10.25mm
8.50mm
cam lift
: 7.05mm
5.95mm
lobe angle
: 118°
103°
timing @ 1.0mm
: -8° / 47°
24° / -1°
valve lift @ TDC
: 0.65mm
1.10mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
REMARKS :
