O.E.M.
Nissan VQ35
V-6cyl 3.5L 24v DOHC (DTx/DTx)
Save to PDF
intake
exhaust

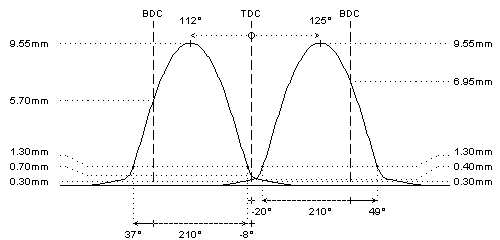

camshaft data:
lash ramp
: 0.30mm
0.30mm
duration @ 0.1mm
: 254°
254°
duration @ 1.0mm
: 209°
209°
valve lift
: 9.55mm
9.55mm
cam lift
: 9.55mm
9.55mm
lobe angle
: 125°
112°
timing @ 1.0mm
: -20° / 49°
37° / -8°
valve lift @ TDC
: 0.40mm
0.70mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: O.E.M.
: O.E.M.
interior spring
fitted load / length
: 18kg @ 37.0mm
: 18kg @ 37.0mm
max. load / lift
: 45kg @ 10.0mm
: 45kg @ 10.0mm
REMARKS :
REMARKS :
#
steel billet camshafts for use in VQ35 engine with following characteristics:
- VVT system with 6-slot cam phase trigger on intake camshafts
- 34mm mechanic cam followers for shimless valve lash adjustment (2mm hole in top surface)
-> Please contact Cat Cams in case of a different engine version (for example: 2-slot cam phase trigger / 35mm aluminium follower with 31mm shim)
