1031702
sport
Alfa Romeo AR 372.03 'eco' (103hp, no VVT)
I-4cyl 1.6L 16v DOHC (DTH/DTH)
intake
exhaust

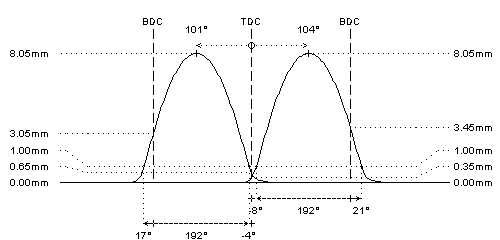

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 234°
234°
duration @ 1.0mm
: 193°
193°
valve lift
: 8.05mm
8.05mm
cam lift
:
lobe angle
: 104°
101°
timing @ 1.0mm
: -8° / 21°
17° / -4°
valve lift @ TDC
: 0.35mm
0.65mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
#
original valve spring info is not available
#
valve spring kit can be developed on request
REMARKS :
