sport
Citro├źn TU5JP4S 125hp
I-4cyl 1.6L 16v DOHC (DTH/DTH)
Save to PDF
intake
exhaust

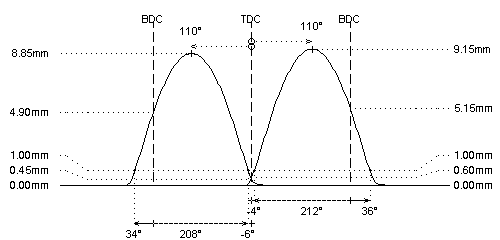

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 240°
236°
duration @ 1.0mm
: 212°
208°
valve lift
: 9.15mm
8.85mm
cam lift
:
lobe angle
: 110°
110°
timing @ 1.0mm
: -4° / 36°
34° / -6°
valve lift @ TDC
: 0.60mm
0.45mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: O.E.M.
: O.E.M.
interior spring
fitted load / length
: 23kg @ 34.0mm
: 23kg @ 34.0mm
max. load / lift
: 60kg @ 9.5mm
: 60kg @ 9.5mm
