1304504
sport
Bmw M54B30 228hp, vanos in+ex
I-6cyl 3.0L 24v DOHC
Save to PDF
intake
exhaust

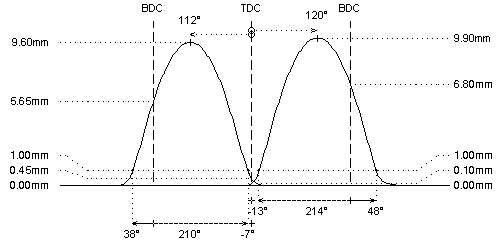

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 257°
247°
duration @ 1.0mm
: 215°
211°
valve lift
: 9.90mm
9.60mm
cam lift
: 9.90mm
9.60mm
lobe angle
: 120° (80°)
112° (87°)
timing @ 1.0mm
: -13° / 48°
38° / -7°
valve lift @ TDC
: 0.10mm (4.49mm)
0.45mm (3.19mm)
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: O.E.M.
: O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
#
original valve spring info is not available
REMARKS :
#
- steel billet camshafts
#
Check distance between valves and piston to be 1mm at least with VVT engaged. Wrong installation will cause severe engine damage!
