1302461
sport
Bmw R53 Mk I - MINI Cooper S
I-4cyl 1.6L 16v SOHC (RPRH/RPRH)
intake
exhaust

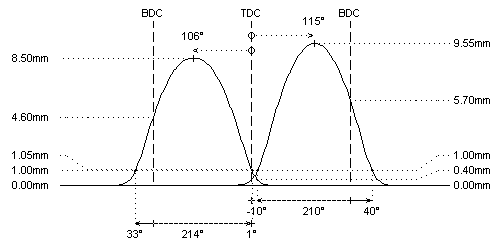

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 257°
259°
duration @ 1.0mm
: 210°
214°
valve lift
: 9.55mm
8.50mm
cam lift
: 5.90mm
6.05mm
lobe angle
: 115°
106°
timing @ 1.0mm
: -10° / 40°
33° / 1°
valve lift @ TDC
: 0.40mm
1.05mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 36kg @ 42.5mm
: 36kg @ 42.5mm
max. load / lift
: 96kg @ 10.5mm
: 96kg @ 10.5mm
REMARKS :
REMARKS :
#
adjustable chain sprocket TBM024 available
#
ECU reprogramming advised
