REMARKS :
#
These camshafts can also be used in M60 B30 (V8 3.0L 32v) engine
#

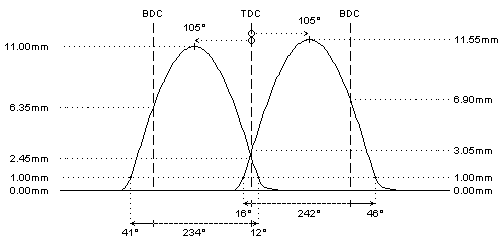

Distance between valve and piston should be 1.0mm at least:
-
check 5-15° after TDC on intake
-
check 5-15° before TDC on exhaust
Machine pistons if required. Wrong installation can cause severe engine damage!
#
valve spring setup:
-
replace std interior spring by PAC-I92009
-
remove lower shim of exterior spring to increase max. allowed lift to 11.5mm
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
