O.E.M.
Mazda B6 /turbo hydraulic cam followers
I-4cyl 1.6L 16v DOHC (DTH/DTH)
intake
exhaust

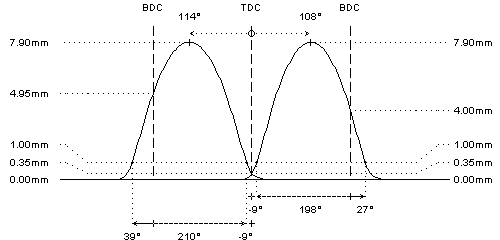

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 237°
248°
duration @ 1.0mm
: 198°
210°
valve lift
: 7.90mm
7.90mm
cam lift
:
lobe angle
: 108°
114°
timing @ 1.0mm
: -9° / 27°
39° / -9°
valve lift @ TDC
: 0.35mm
0.35mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 20kg @ 39.5mm
: 20kg @ 39.5mm
max. load / lift
: 59kg @ 10.0mm
: 59kg @ 10.0mm
REMARKS :
REMARKS :
#
camshafts for use in 1598cc B6 engines:
- long intake camshaft with sleeve for distributor drive
- short exhaust camshaft
