Toyota 3S-GE 2nd gen
I-4cyl 2.0L 16v DOHC (DTs/DTs)
Save to PDF
intake
exhaust

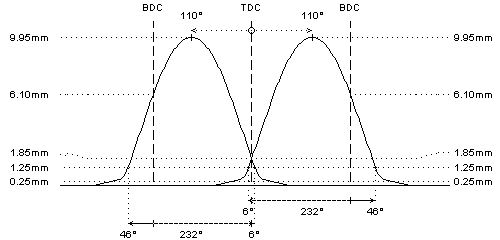

camshaft data:
lash ramp
: 0.25mm
0.25mm
duration @ 0.1mm
: 278°
278°
duration @ 1.0mm
: 232°
232°
valve lift
: 9.95mm
9.95mm
cam lift
: 9.95mm
9.95mm
lobe angle
: 110°
110°
timing @ 1.0mm
: 6° / 46°
46° / 6°
valve lift @ TDC
: 1.85mm
1.85mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: O.E.M.
: O.E.M.
interior spring
fitted load / length
: 23kg @ 34.0mm
: 23kg @ 34.0mm
max. load / lift
: 54kg @ 10.0mm
: 54kg @ 10.0mm
REMARKS :
#
check free travel between retainer and valve seal over 9mm valve lift and modify if required
REMARKS :
#
camshafts for 2nd generation 3S-GE engines. Please check following dimensions before ordering:
- cam base diameter: 28mm or 32.5mm, check before ordering
- cam follower diameter: 31.0mm
- shim diameter: 28.0mm (between cam and follower)
#
ECU reprogramming required
