6300421
hot street - dirt track
Simca / Talbot 1100Ti / Bagheera
I-4cyl 1.3L 8v OHV
Save to PDF
intake
exhaust

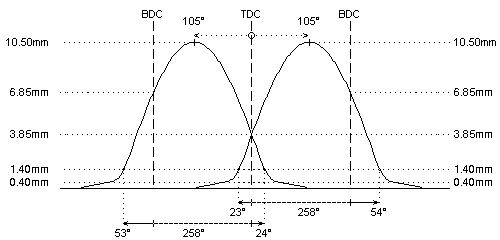

camshaft data:
lash ramp
: 0.38mm
0.38mm
duration @ 0.1mm
: 299°
299°
duration @ 1.0mm
: 257°
257°
valve lift
: 10.50mm
10.50mm
cam lift
: 7.00mm
7.00mm
lobe angle
: 105°
105°
timing @ 1.0mm
: 23° / 54°
53° / 24°
valve lift @ TDC
: 3.85mm
3.85mm
parts setup:
cam wheels :
:
:
follower
: View CAT063
: View CAT063
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: View PAC-S10011
: View PAC-S10011
interior spring
fitted load / length
: 42kg @ 36.6mm
: 42kg @ 36.6mm
max. load / lift
: 99kg @ 11.5mm
: 99kg @ 11.5mm
REMARKS :
#
check distance between valve seal and retainer to be at least 0.6mm at full lift
REMARKS :
#
Camshaft with 1 helix gear and clockwise rotation (used in 1100Ti/Bagheera)
#
FOR COMPETITION APPLICATIONS ONLY. Following details must be verified:
-
the camshafs must turn smooth in the cylinderhead, provide free travel by machining where needed
-
distance between valve seal and retainer at full lift must be 0.6mm at least
-
minimum valve spring travel of 1.0mm at full lift must be provided
-
distance between valve and piston 1.0mm (pref. 1.5mm). check 5-15° before TDC on exhaust, and after TDC on intake
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
