REMARKS :
#

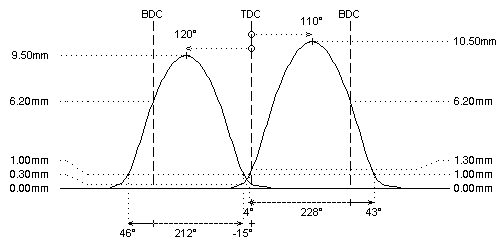

The intake camshaft is similar to the exhaust camshaft to fit two adjustable (non VVT) pulleys
#
Distance between valve and piston should be 1.0mm at least:
-
check 5-15° after TDC on intake
-
check 5-15° before TDC on exhaust
Machine pistons if required. Wrong installation can cause severe engine damage!
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
#
for TURBO conversion (atmospheric to turbo)
