REMARKS :
#
- camshafts for use in AQP-AUE (2.8L) engines with connecting chain and VVT tensioner between intake and exhaust
#
check distance between valve seal and retainer to be at least 0.6mm at full lift
#
for TURBO conversion (atmospheric to turbo)
#
ECU reprogramming required
#

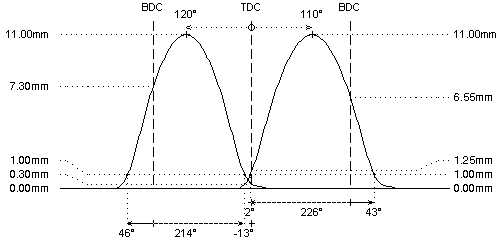

Distance between valve and piston should be 1.0mm at least:
-
check 5-15° after TDC on intake
-
check 5-15° before TDC on exhaust
Machine pistons if required. Wrong installation can cause severe engine damage!
