REMARKS :
#
- only for engines with VVT system (intake) and distribution with belt drive
- camshafts for use with original VVT system
#
The exact valve timing data of the original camshafts are not known. Valve timing data are illustrated on estimated peak angle of 110°. The actual valve timing in the engine may be different, as well as the indicated lift at TDC.
#

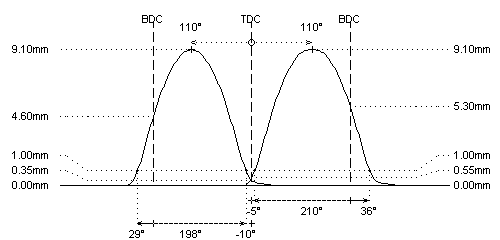

These engines have VANOS system on intake camshaft. Valve lift and timing data are illustrated on a virtual centerline of 110° (with corresponding virtual lift at TDC). The VANOS system changes the centerline and therefore the timing data and lift on TDC!!!
