REMARKS :
#
steel billet camshafts
- 52202xx: camshafts for use in 944 S2 engine (19 teeth, no VVT tensioner, hydraulic tappets)
- 52212xx: camshafts for use in 944 S2 engine (19 teeth, no VVT tensioner, mechanical tappets)
#

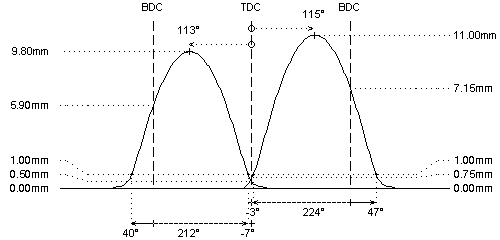

The exact valve timing data of the original camshafts are not known. Valve timing data are illustrated on estimated peak angle of 110°. The actual valve timing in the engine may be different, as well as the indicated lift at TDC.
