Volkswagen AER, ALL 50hp
I-4cyl 1.0L 8v SOHC (DTH/DTH)
intake
exhaust

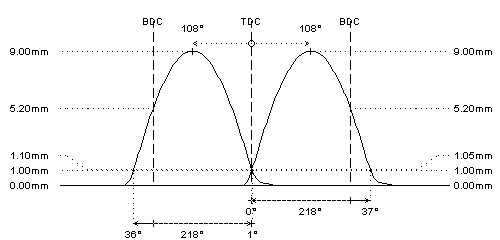

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 261°
261°
duration @ 1.0mm
: 217°
217°
valve lift
: 9.00mm
9.00mm
cam lift
:
lobe angle
: 108°
108°
timing @ 1.0mm
: -0° / 37°
36° / 1°
valve lift @ TDC
: 1.05mm
1.10mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: O.E.M.
: O.E.M.
interior spring
fitted load / length
: 27kg @ 31.5mm
: 27kg @ 31.0mm
max. load / lift
: 54kg @ 9.0mm
: 54kg @ 9.0mm
REMARKS :
#
different valve spring setups have been used in the original engines: please double check the measurements and contact Catcams in case of doubt
#
ONLY for 7mm valves with tripple groove (MK-7H valve keepers)
REMARKS :
#
Different OEM camshafts were used in this engine family. For ordering the correct sports camshaft, please check:
- engine reference code
- cam reference code
- cam lift
- 214.keyway%20position.pdf keyway position: centered between 1st and 2nd cam lobe (54°)(76061xx) OR close to 1st cam lobe (22°)(76161xx)
Example: engine code "AER" has camshaft code "030 BG", cam lift "8.5mm" and keyway close to 1st cam lobe.
#
ECU reprogramming required
