7602601
turbo conversion
Volkswagen BYD-BWJ-BHZ EA113 TFSI 230-240-265hp
I-4cyl 2.0L 16v DOHC (RPRH/RPRH)
intake
exhaust

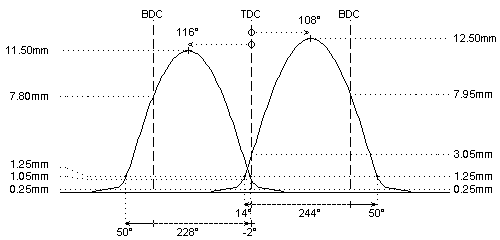

camshaft data:
lash ramp
: 0.25mm
0.25mm
duration @ 0.1mm
: 286°
270°
duration @ 1.0mm
: 244°
228°
valve lift
: 12.50mm
11.50mm
cam lift
: 7.45mm
6.95mm
lobe angle
: 108°
116°
timing @ 1.0mm
: 14° / 50°
50° / -2°
valve lift @ TDC
: 3.05mm
1.05mm
parts setup:
cam wheels :
:
: View CTVW038
follower
: View INFO
: View INFO
valve lash
: View TS101
: View TS101
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: View 99423/s
: View 99423/s
lower retainer
: View 99528/O
: View 99528/O
exterior spring
: View PAC-E19864
: View PAC-E19864
interior spring
: View PAC-I19864
: View PAC-I19864
fitted load / length
: 28kg @ 34.0mm
: 31kg @ 33.0mm
max. load / lift
: 89kg @ 14.5mm
: 89kg @ 13.5mm
REMARKS :
#
16x CAT017 rocker arm
#
16x CAT018 shaft for rocker arm
#
16x CAT019 support for rocker arm
#
Cylinder head needs to be machined in order to mount the valve springs (create clearance diameter 25.4mm for valve spring outer diameter)
#
Use flat shims to increase the valve spring tension to the suggested load.
REMARKS :
#
- camshafts for use with CATCAMS slipper kit (cam lobes are not compatible with other rocker arm systems)
- cylinder head need to be machined to fit the rocker arm system(service available from CATCAMS)
- camshaft with fuel pump lobe (version without fuel pump lobe: 76027xx)
#
FOR COMPETITION APPLICATIONS ONLY. Following details must be verified:
-
the camshafs must turn smooth in the cylinderhead, provide free travel by machining where needed
-
distance between valve seal and retainer at full lift must be 0.6mm at least
-
minimum valve spring travel of 1.0mm at full lift must be provided
-
distance between valve and piston 1.0mm (pref. 1.5mm). check 5-15° before TDC on exhaust, and after TDC on intake
#
ONLY for use in competition engines with independent engine management (throttle position sensor) or carburettors
#
for BIG TURBO conversion (std to big turbo)
