5800411
F.I.A.
Rover K series
intake
exhaust

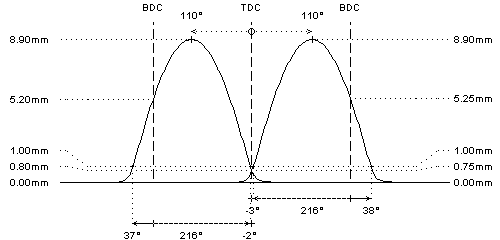

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 257°
257°
duration @ 1.0mm
: 215°
215°
valve lift
: 8.90mm
8.90mm
cam lift
:
lobe angle
: 110°
110°
timing @ 1.0mm
: -3° / 38°
37° / -2°
valve lift @ TDC
: 0.75mm
0.80mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 25kg @ 37.5mm
: 25kg @ 37.5mm
max. load / lift
: 55kg @ 11.0mm
: 55kg @ 11.0mm
REMARKS :
REMARKS :
#
FIA Gr.N. (A+B size only). Please indicate if this camshaft will be used for Gr.N. when ordering.
#
machining of cylinder head can be required at camlobes
