4601306
sport
Opel C30SE 197hp
I-6cyl 3.0L 24v DOHC (DTH/DTH)
intake
exhaust

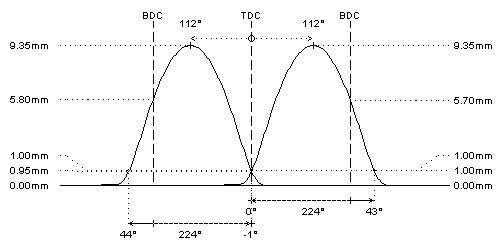

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 261°
261°
duration @ 1.0mm
: 223°
223°
valve lift
: 9.35mm
9.35mm
cam lift
:
lobe angle
: 112°
112°
timing @ 1.0mm
: -0° / 43°
44° / -1°
valve lift @ TDC
: 1.00mm
0.95mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 28kg @ 33.8mm
: 28kg @ 33.8mm
max. load / lift
: 72kg @ 10.5mm
: 72kg @ 10.5mm
REMARKS :
REMARKS :
