4600300
sport
Opel OHC small block (1.2 > 1.6L)
I-4cyl 1.6L 8v SOHC (RPH/RPH)
intake
exhaust

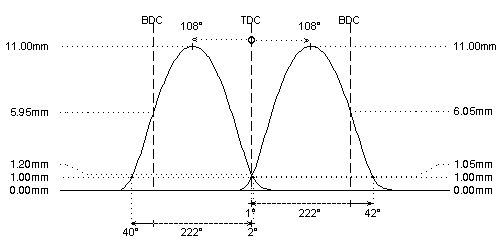

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 265°
265°
duration @ 1.0mm
: 223°
222°
valve lift
: 11.00mm
11.00mm
cam lift
: 6.40mm
6.40mm
lobe angle
: 108°
108°
timing @ 1.0mm
: 1° / 42°
40° / 2°
valve lift @ TDC
: 1.05mm
1.20mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 22kg @ 31.5mm
: 22kg @ 31.5mm
max. load / lift
: 68kg @ 11.0mm
: 68kg @ 11.0mm
REMARKS :
#
check std valve spring setup for coil bind length and use valve spring kit if required
REMARKS :
#
Sport version for 1300N OHC
