4000341
sport
Mercedes M102 cosworth
I-4cyl 2.3L 16v DOHC (DT/DT)
intake
exhaust

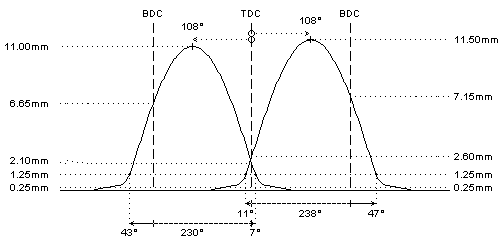

camshaft data:
lash ramp
: 0.25mm
0.25mm
duration @ 0.1mm
: 284°
278°
duration @ 1.0mm
: 238°
230°
valve lift
: 11.50mm
11.00mm
cam lift
:
lobe angle
: 108°
108°
timing @ 1.0mm
: 11° / 47°
43° / 7°
valve lift @ TDC
: 2.60mm
2.10mm
parts setup:
cam wheels :
:
:
follower
: View CC007
: View CC007
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: View 99310
: View 99310
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: View PAC-E12009
: View PAC-E12009
interior spring
: View PAC-I12009
: View PAC-I12009
fitted load / length
: 32kg @ 33.5mm
: 32kg @ 33.5mm
max. load / lift
: 102kg @ 14.0mm
: 102kg @ 14.0mm
REMARKS :
REMARKS :
#
- steel billet camshafts
- front bearing / gear assembly not available
- camshafts also fit 2.5L engine
#
ECU reprogramming required
#
valve seals must be lowered. Distance between valve seal and retainer must be at least 0.6mm at full lift.
