2701802
sport
Hyundai G4GF Beta 1
I-4cyl 2.0L 16v DOHC (DTH/DTH)
intake
exhaust

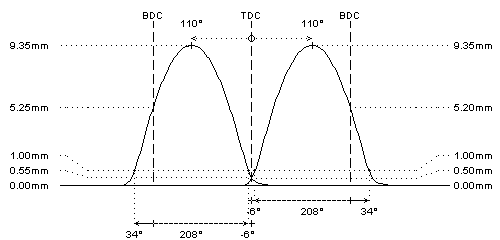

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 250°
250°
duration @ 1.0mm
: 208°
208°
valve lift
: 9.35mm
9.35mm
cam lift
:
lobe angle
: 110°
110°
timing @ 1.0mm
: -6° / 34°
34° / -6°
valve lift @ TDC
: 0.50mm
0.55mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 25kg @ 37.2mm
: 27kg @ 36.5mm
max. load / lift
: 60kg @ 10.0mm
: 60kg @ 9.5mm
REMARKS :
REMARKS :
#
Only for use in early type G4GF engines with hydraulic cam followers.
Non cvvt engine.
