2200232
sport
Ford Kent (1.0 - 1.6L)
I-4cyl 1.3L 8v OHV
intake
exhaust

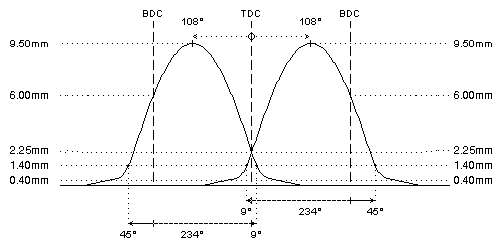

camshaft data:
lash ramp
: 0.38mm
0.38mm
duration @ 0.1mm
: 280°
280°
duration @ 1.0mm
: 234°
234°
valve lift
: 9.50mm
9.50mm
cam lift
: 6.25mm
6.25mm
lobe angle
: 108°
108°
timing @ 1.0mm
: 9° / 45°
45° / 9°
valve lift @ TDC
: 2.25mm
2.25mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
#
original valve spring info is not available
#
valve spring kit can be developed on request
