1901657
full race
Fiat 182 A4.000 103hp
I-4cyl 1.6L 16v DOHC (DTH/DTH)
intake
exhaust

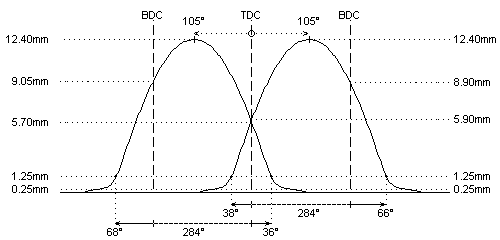

camshaft data:
lash ramp
: 0.25mm
0.25mm
duration @ 0.1mm
: 327°
327°
duration @ 1.0mm
: 284°
284°
valve lift
: 12.40mm
12.40mm
cam lift
:
lobe angle
: 105°
105°
timing @ 1.0mm
: 38° / 66°
68° / 36°
valve lift @ TDC
: 5.90mm
5.70mm
parts setup:
cam wheels :
:
:
follower
: View CC002
: View CC002
valve lash
: View TS102
: View TS102
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: View PAC-E92009
: View PAC-E92009
interior spring
: View PAC-I92009
: View PAC-I92009
fitted load / length
: 30kg @ 35.0mm
: 30kg @ 35.0mm
max. load / lift
: 98kg @ 14.0mm
: 98kg @ 14.0mm
REMARKS :
REMARKS :
#
FOR COMPETITION APPLICATIONS ONLY. Following details must be verified:
-
the camshafs must turn smooth in the cylinderhead, provide free travel by machining where needed
-
distance between valve seal and retainer at full lift must be 0.6mm at least
-
minimum valve spring travel of 1.0mm at full lift must be provided
-
distance between valve and piston 1.0mm (pref. 1.5mm). check 5-15° before TDC on exhaust, and after TDC on intake
#
ONLY for use in competition engines with independent engine management (throttle position sensor) or carburettors
