1603512
sport
Nissan SR20DE (T) roller rocker
I-4cyl 2.0L 16v DOHC (RP/RP)
intake
exhaust

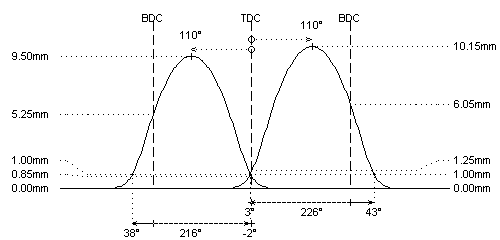

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 275°
266°
duration @ 1.0mm
: 226°
216°
valve lift
: 10.15mm
9.50mm
cam lift
: 10.15mm
9.50mm
lobe angle
: 110°
110°
timing @ 1.0mm
: 3° / 43°
38° / -2°
valve lift @ TDC
: 1.25mm
0.85mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
#
check std valve spring setup for coil bind length and use valve spring kit if required
REMARKS :
#
camshaft only for use with
roller rocker arms
(NO slipper followers!) and
without VVT system
on intake camshaft
