1321714
hot street - dirt track
Citroën TU5J4 120hp
I-4cyl 1.6L 16v DOHC (DTH/DTH)
intake
exhaust

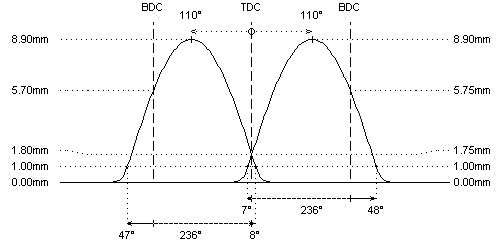

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 272°
272°
duration @ 1.0mm
: 235°
235°
valve lift
: 8.90mm
8.90mm
cam lift
:
lobe angle
: 110°
110°
timing @ 1.0mm
: 7° / 48°
47° / 8°
valve lift @ TDC
: 1.75mm
1.80mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 23kg @ 33.8mm
: 23kg @ 33.8mm
max. load / lift
: 63kg @ 10.0mm
: 63kg @ 10.0mm
REMARKS :
REMARKS :
#
stronger springs [ref. PAC-E99862] or [ref. PAC-S90015] can replace the OEM without further modifications
#
for race engines, without positioning marks in the camshaft. (A-B) homologation tolerances on all camlobes. ON SPECIAL DEMAND ONLY
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
